Trays

DELION tray solutions are designed to improve column performance by delivering stable hydraulics, high mass-transfer efficiency and reliable capacity. We support both new columns and revamps, selecting tray type and internals based on service conditions, fouling tendency and turn-down requirements

 Conventional Tray Options

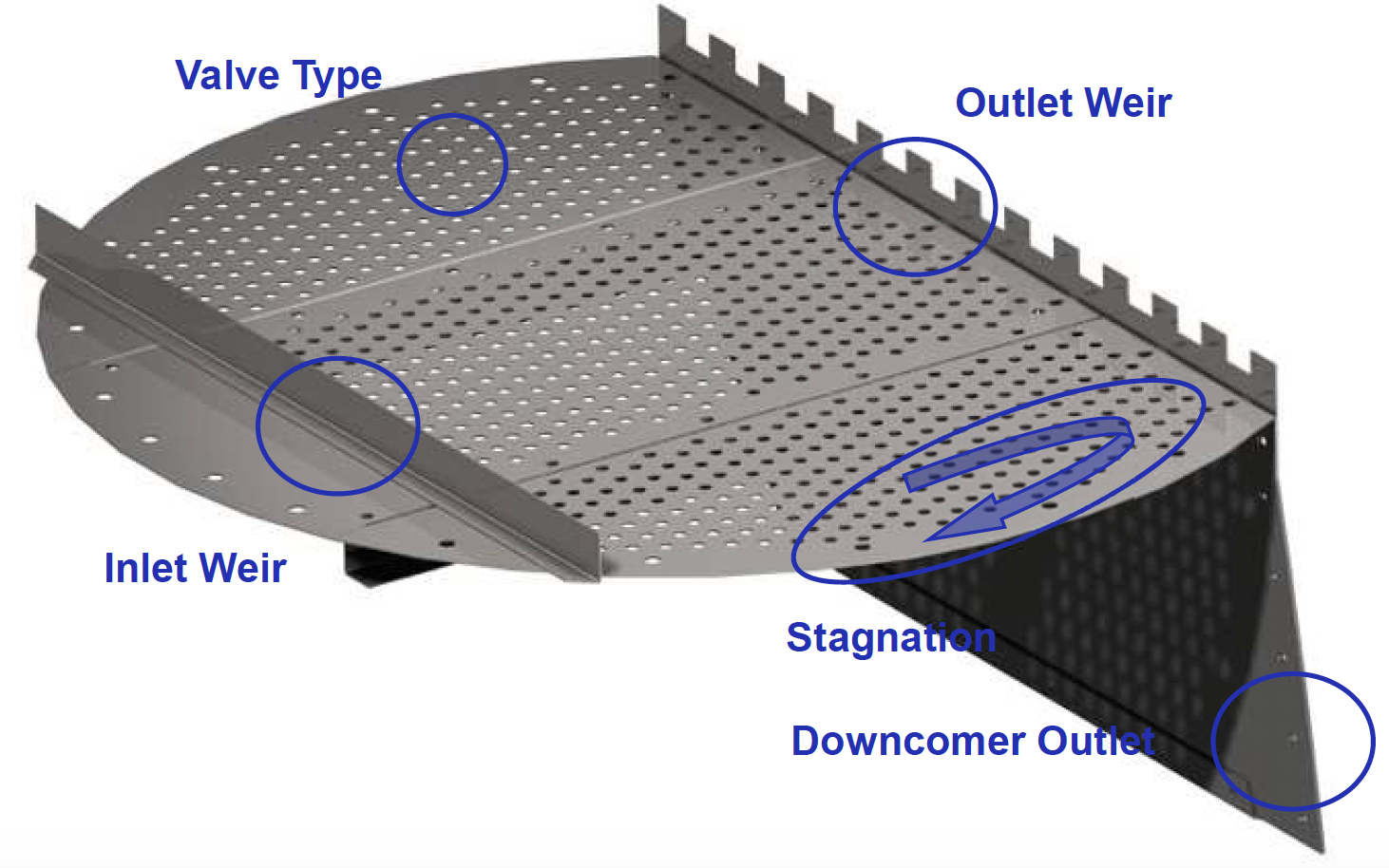

Sieve Trays

Sieve trays are a robust and cost-effective option where fouling is limited and a wide operating window is not critical. Perforated decks are selected to meet capacity and efficiency targets.

Valve Trays (Float & Fixed)

Valve trays offer improved operating flexibility by allowing the open area to adjust with vapor rate (float valves) or by using defined fixed openings (fixed valves). They are often selected when turndown and stable operation are important.

Bubble-Cap Trays

Bubble-cap trays can be preferred where very stable contacting is needed across changing rates, or where specific hydraulic behavior is required. Selection depends on service conditions and column objectives.

 Specialty Trays

Options for difficult services

For specific bottlenecks or unusual operating regimes, DELION supplies specialty trays such as:

• Dual-flow trays

• Baffle trays

• Cartridge trays

• Channel trays

• Shell trays

 Downcomers & Flow Arrangements

Downcomer configurations

Downcomer geometry and placement strongly affect tray hydraulics and capacity. Depending on constraints and revamp goals, multiple downcomer concepts can be applied (e.g., segmental/tangent/cross-flow styles and other variants).

 High-Capacity / Revamp-Focused Tray Solutions

Performance upgrades for debottlenecking

For capacity expansion or stability improvements, we use revamp-oriented concepts such as enhanced downcomers and other hydraulic improvements to increase handling and reduce maldistribution risk.

Anti-fouling / stability add-ons (when needed

In challenging services, additional features (e.g., baffles/flow-conditioning concepts) can be considered to improve froth behavior and liquid distribution, based on service diagnosis

Send us your column data (diameter, pressure, rates, internals layout) and revamp targets. We’ll propose the most suitable tray and internals configuration.
